XBFQ-700-1300

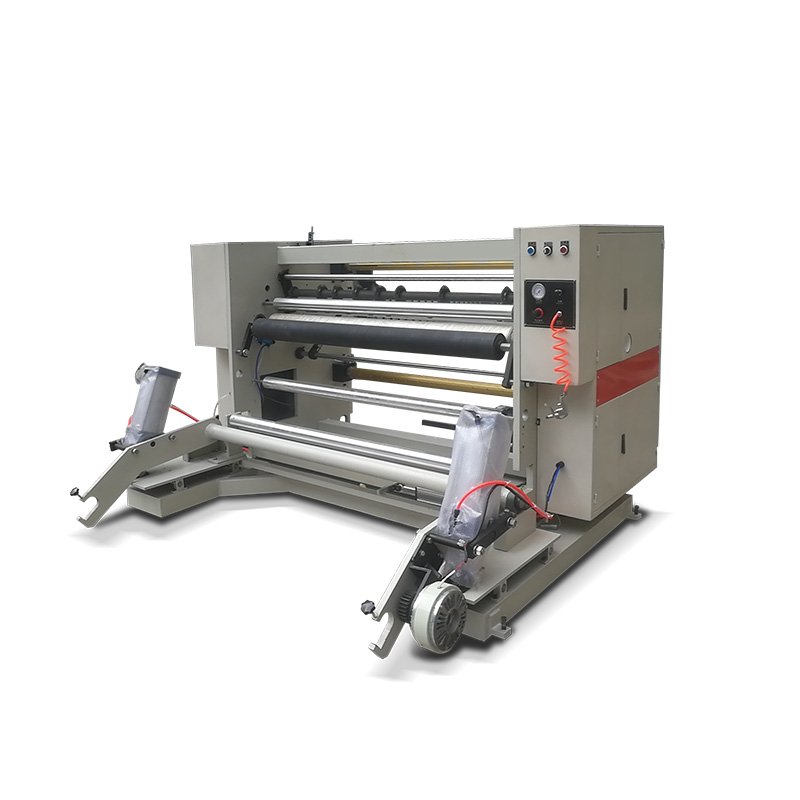

Vertical/Horizontal Computerized Slitting Machine

This machine is ideal for slitting various roll materials, including BOPP, PET, PVC, and other printed composite films, as well as composite aluminum films. It features magnetic powder tension control for the rewind, automatic LPC (Low-Pressure Coordinated) tracking, preset meter counts, and automatic shutdown.

Main technical parameters

型 号TypeXBFQ-700-1300
最大原料宽度The maximum width of raw materials700-1300mm(根据用户需求)
最大原料直径The maximum diameter of raw materials¢700mm
收卷最大直径Rolling the largest diameter¢500mm
机械速度Machine speed0-160m/min
总功率Total power7.5Kw
机器重量Weight3300Kg
外形尺寸Dimensions3300x2500x2000mm
