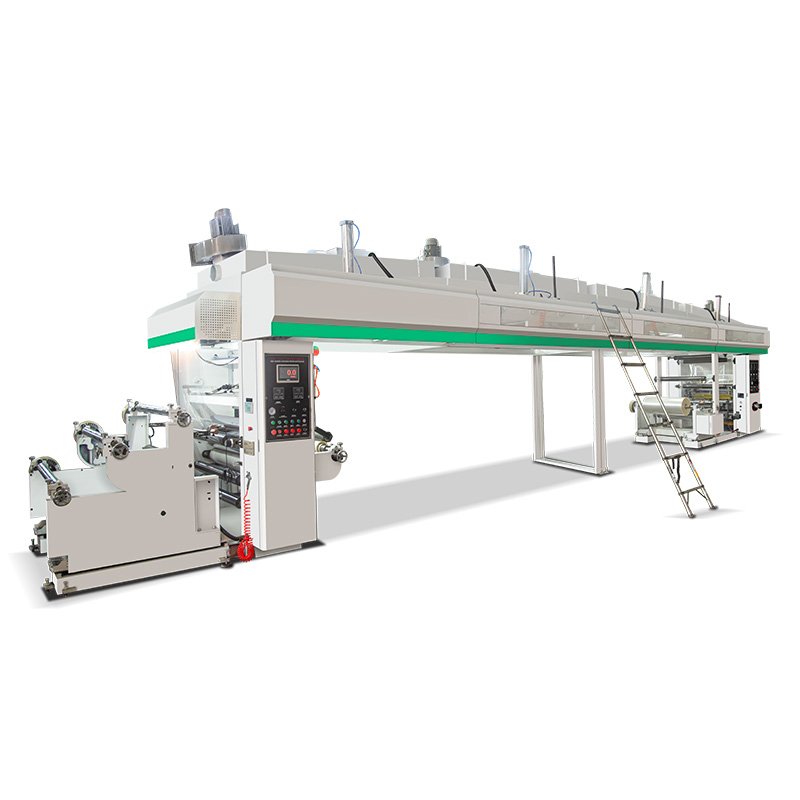

Dry Laminating Machine
This machine integrates optical, electrical, and pneumatic components, boasting a rational design, compact structure, high automation, and easy operation, stable performance, and a high product yield. The drying tunnel utilizes segmented, constant-temperature hot air drying. Internal heat transfer rollers are linked to the main machine, and the heating rollers are heated using thermal oil. An air shaft is used, and the winding tension is controlled by a PLC. Dual inverters control the synchronous tension of the two motors.
Features
1. Dual frequency conversion speed regulation.
2. Anilox roller gluing system.
3. Single-station unwinding and take-up rack.
4. Photoelectric web guide for glue application, take-up, and take-up.
5. Film tension in the drying tunnel is compensated by a floating roller for constant tension.
6. Unwinding tension is controlled by a magnetic powder brake.
7. Rewinding tension is controlled by a torque motor.
8. Double-layer pneumatic opening drying tunnel.
9. Four-stage constant temperature hot air drying.
10. Laminating rollers are heated by thermal oil.
11. Guide rollers in the drying tunnel are linked to the main machine.
12. PLC human-machine interface control.
Main technical parameters
| 型 号 | Type | GF-800 | GF-1100 |
| 复合宽度 | Compound width | 800mm | 1100mm |
| 放卷直径 | Unwinding diameter | 600mm 76 | 600mm筒芯76mm |
| 收卷直径 | Rewinding diameter | 800mm | 800mm |
| 机械速度 | Mechanical speed | 180m/min | 180m/min |
| 加热范围 | Heating range | 室温-80℃ | 室温-80℃ |
| 总功率 | Total power | 58Kw | 68Kw |
| 外形尺寸 | Dimensions | 10800x2400x3100mm | 10800x2700x3100mm |
| 机器重量 | Machine weight | 5000Kg | 6000Kg |
